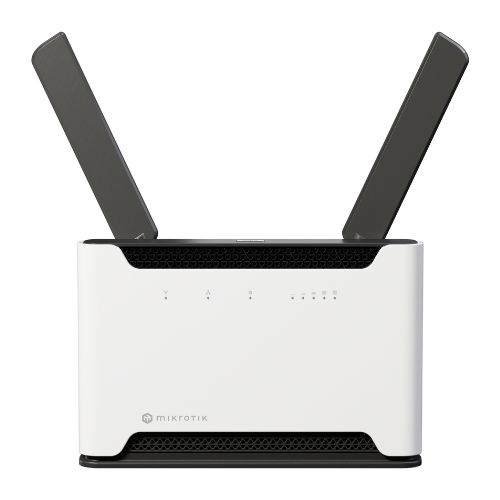

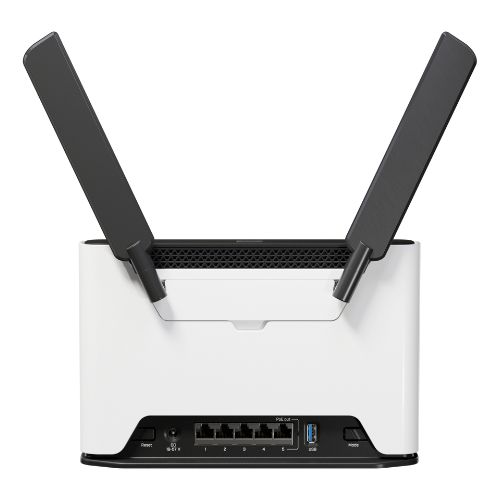

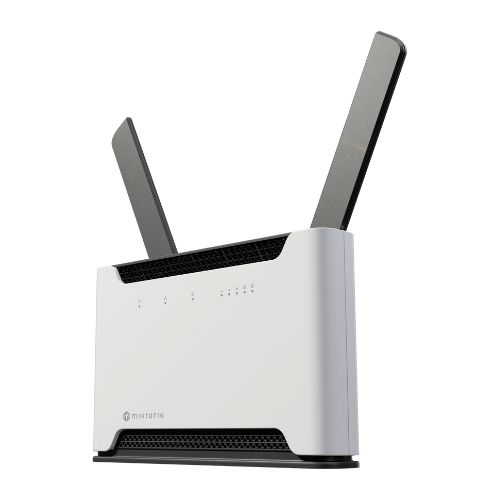

Chateau PRO ax
₹24,949.00 Exc. GST
Designed with professional users in mind, the Chateau PRO ax Wi-Fi 6 home access point is engineered to squeeze out maximum performance, handling more traffic than ever before.
With its unstoppable quad-core ARM CPU running at 2.2 GHz and our latest cutting-edge wireless chip, Chateau PRO ax leverages 4 spatial streams to achieve double the data rate of the usual dual-chain devices, ensuring that your network is always fast, reliable, and ready to support even the most demanding tasks.
| Details | |
|---|---|
| Product code | H53UiG-5HaxQ2HaxQ |
| Architecture | ARM 64bit |
| CPU | IPQ-8072A |
| CPU core count | 4 |
| CPU nominal frequency | 2208 MHz |
| Switch chip model | IPQ-8072 |
| RouterOS license | 6 |
| Operating System | RouterOS v7 |
| Size of RAM | 1 GB |
| Storage size | 128 MB |
| Storage type | NAND |
| MTBF | Approximately 200’000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
| Suggested price | $199.00 |
| Details | |
|---|---|
| Wireless 2.4 GHz Max data rate | 1148 Mbit/s |
| Wireless 2.4 GHz number of chains | 4 |
| Wireless 2.4 GHz standards | 802.11b/g/n/ax |
| Antenna gain dBi for 2.4 GHz | 5 |
| Wireless 2.4 GHz chip model | QCN-5024 |
| Wireless 2.4 GHz generation | Wi-Fi 6 |
| Wireless 5 GHz Max data rate | 2400 Mbit/s |
| Wireless 5 GHz number of chains | 4 |
| Wireless 5 GHz standards | 802.11a/n/ac/ax |
| Antenna gain dBi for 5 GHz | 6 |
| Wireless 5 GHz chip model | QCN-5054 |
| Wireless 5 GHz generation | Wi-Fi 6 |
| WiFi speed | AX3600 |
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 5 |
| Number of 1G Ethernet ports with PoE-out | 1 |
| Details | |
|---|---|
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | USB 3.0 type A |
| Max USB current (A) | 1.5 |
| Details | |
|---|---|
| Number of DC inputs | 1 (DC jack) |
| DC jack input Voltage | 18-57 V |
| Max power consumption | 55 W |
| Max power consumption without attachments | 18 W |
| Cooling type | Passive |
| Details | |
|---|---|
| PoE-out ports | Ether5 |
| PoE out | Passive PoE up to 57V |
| Max out per port output (input 18-30 V) | 600 mA |
| Max out per port output (input 30-57 V) | 500 mA |
| Max total out (A) | 0.600 A |
| Total output current | 0.600 |
| Total output power | 22.8 |
